Greenplum on Kubernetes 1.0がリリースされたので試してみます。今回はPrivate Network上のMicroK8sにインストールします。
目次
- Tanzu Greenplum on Kubernetes 1.0のダウンロード
- Tanzu Greenplum on Kubernetes 1.0のリロケーション
- Greenplum Operatorのインストール
- Greenplum Clusterの作成
- 動作確認

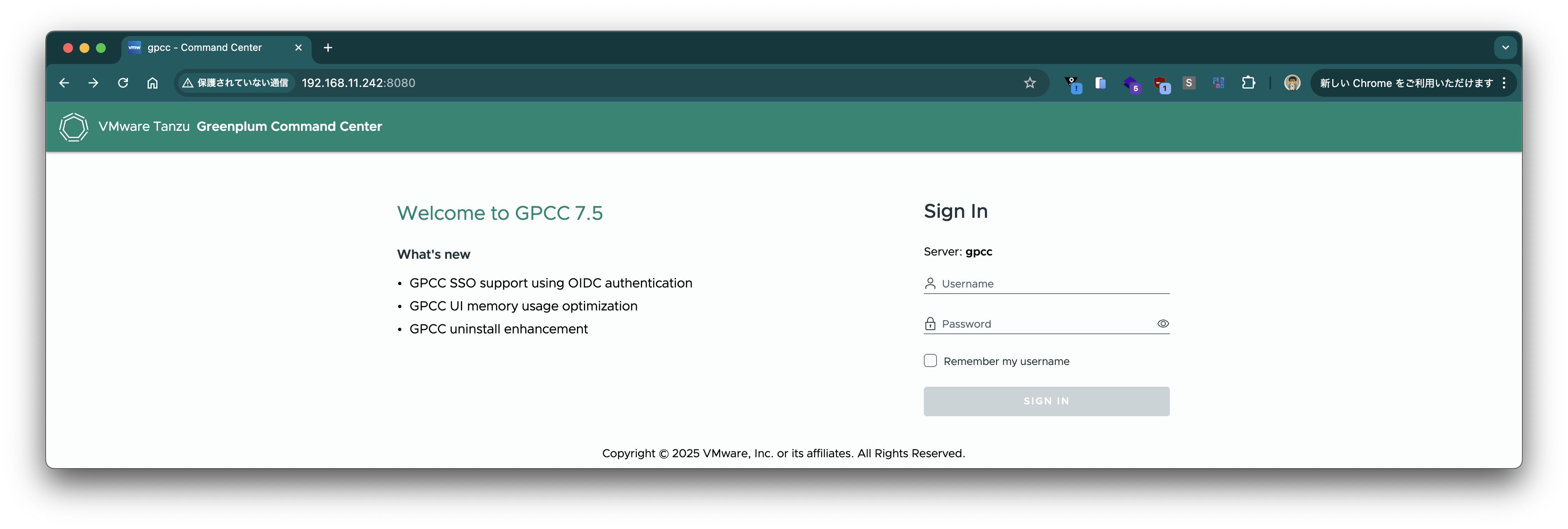

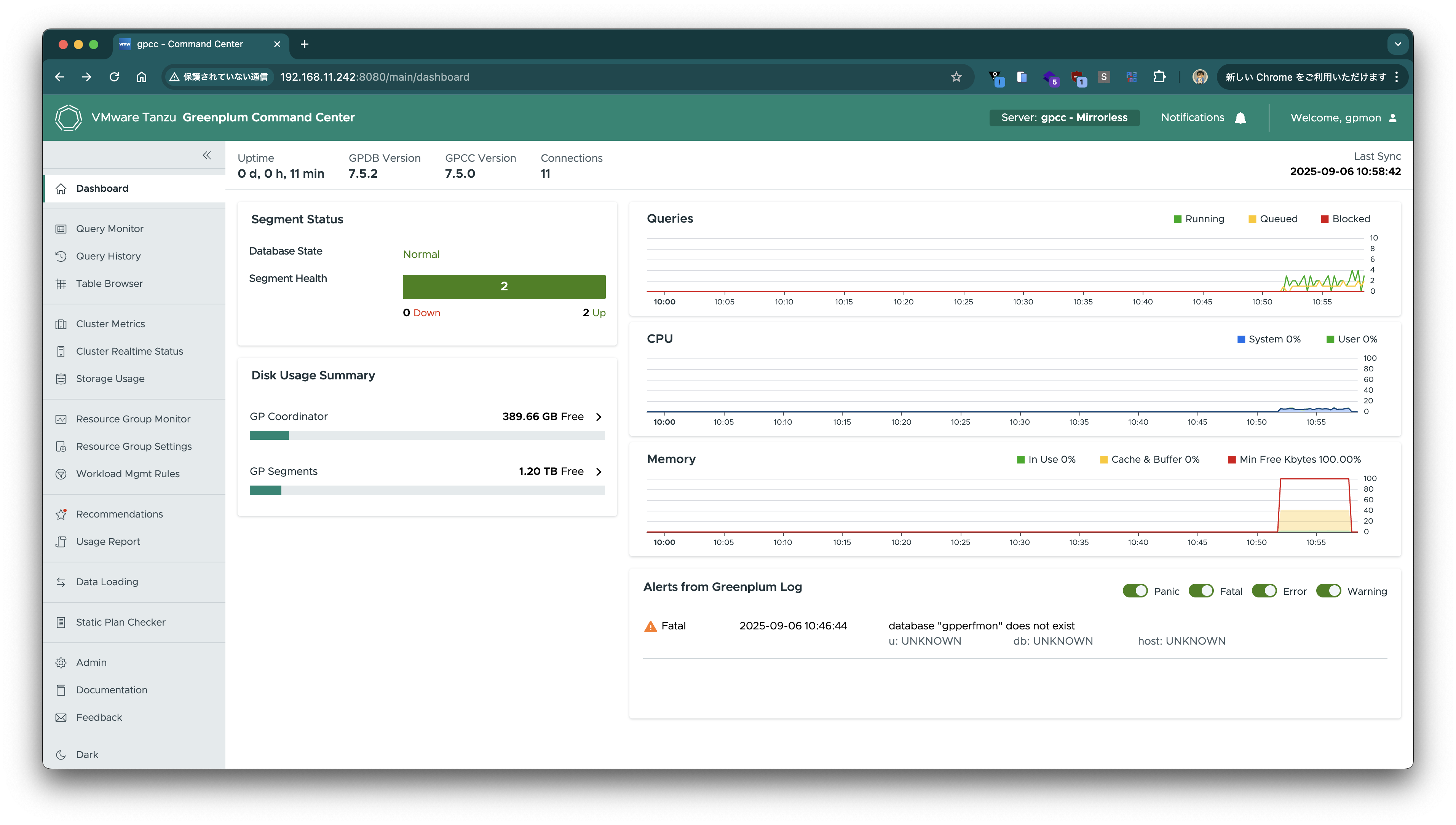

- Greenplum Command Centerの作成
- リソースの削除
Tanzu Greenplum on Kubernetes 1.0のダウンロード
Tanzu Greenplum on Kubernetes 1.0は次のリンクからダウンロード可能です(多分、要ライセンス登録)：

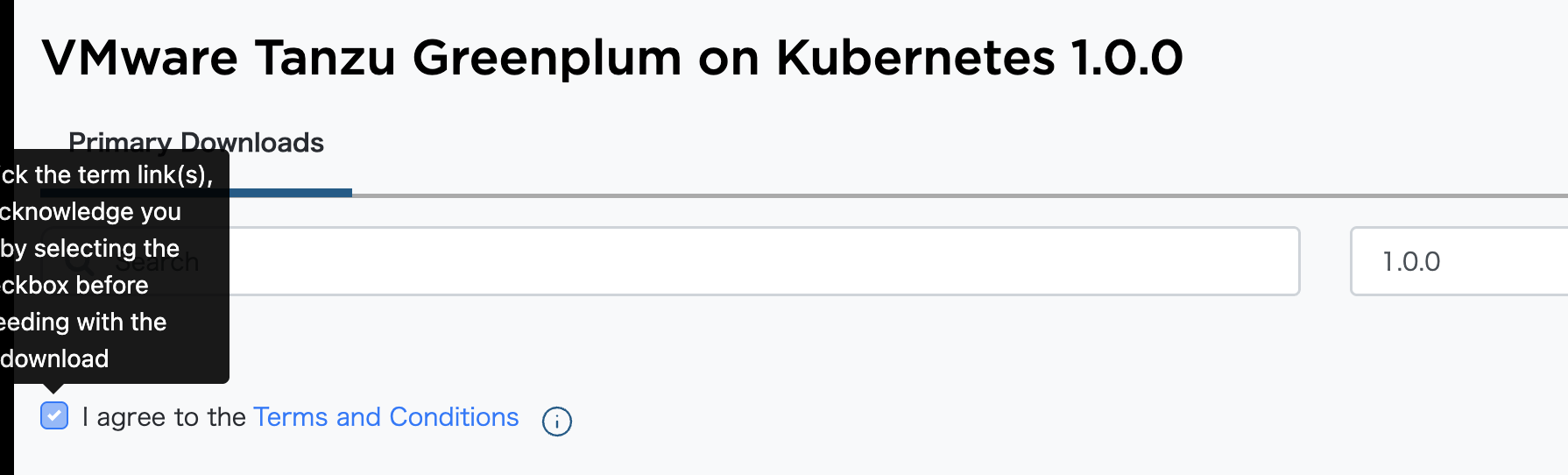

"Terms and Conditions"のリンクをクリックした後、"I agree ..."にチェックを入れます。

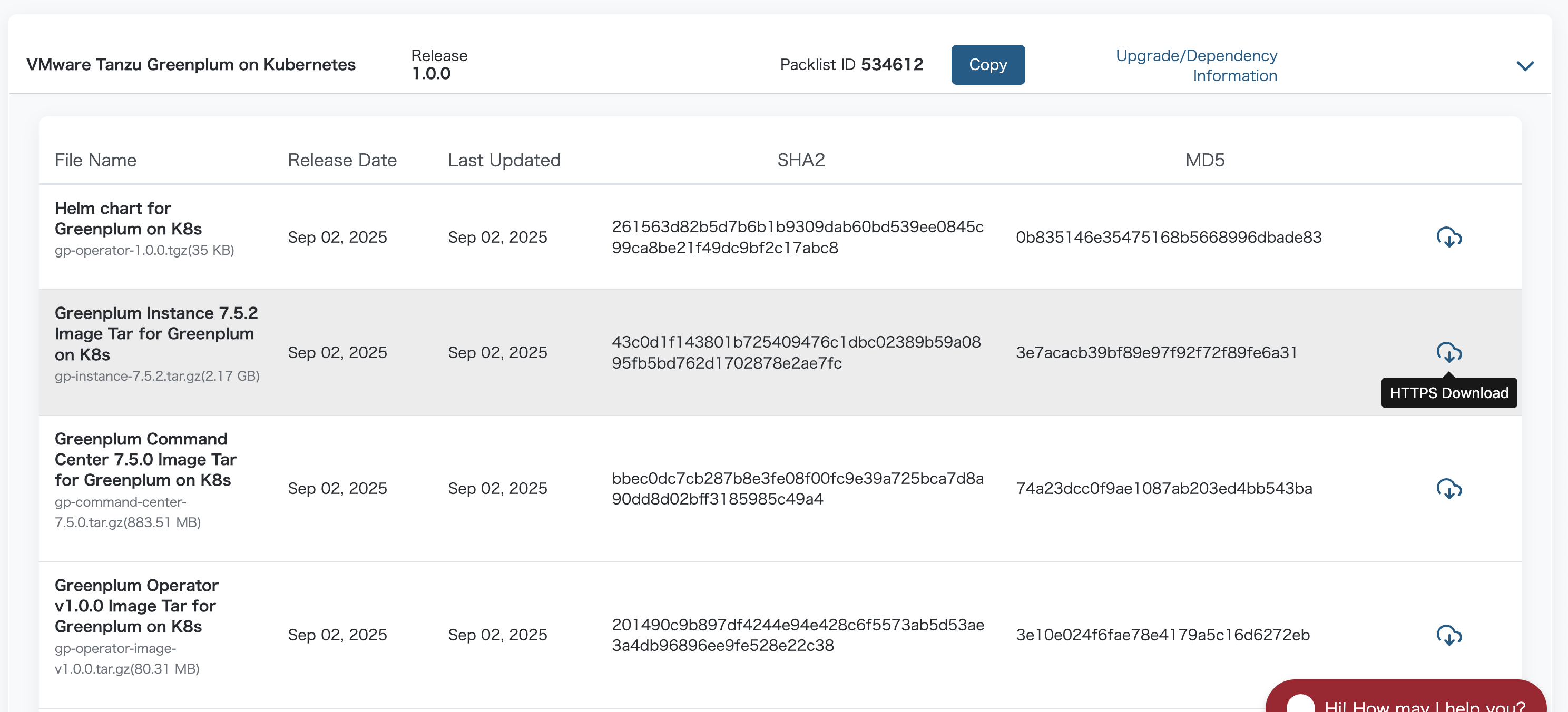

次のファイルをダウンロードします。
- gp-command-center-7.5.0.tar.gz
- gp-instance-7.5.2.tar.gz
- gp-operator-1.0.0.tgz
- gp-operator-image-v1.0.0.tar.gz
Tanzu Greenplum on Kubernetes 1.0のリロケーション
ダウンロードしたら次の3つのイメージをローカルのDockerにロードします。
docker load -i gp-operator-image-v1.0.0.tar.gz
docker load -i gp-instance-7.5.2.tar.gz
docker load -i gp-command-center-7.5.0.tar.gz
今回はPrivate Network上のSelf HostedなContainer Registryにプッシュしてからインストールします。push先はPrivate Network上でないとEULAに違反する恐れがあるので気をつけてください。
REGISTRY_HOSTNAME=my-private-registry.example.com
REGISTRY_USERNAME=your-username
REGISTRY_PASSWORD=your-password
docker login ${REGISTRY_HOSTNAME} -u ${REGISTRY_USERNAME} -p ${REGISTRY_PASSWORD}
次のコマンドでイメージをタグ付けしてプッシュします。
DESTINATION_REPOSITORY=${REGISTRY_HOSTNAME}
docker tag tds-greenplum-docker-prod-local.usw1.packages.broadcom.com/greenplum/gp-operator/gp-operator:v1.0.0 ${DESTINATION_REPOSITORY}/greenplum/gp-operator/greenplum-operator:v1.0.0
docker push ${DESTINATION_REPOSITORY}/greenplum/gp-operator/greenplum-operator:v1.0.0
docker tag tds-greenplum-docker-prod-local.usw1.packages.broadcom.com/greenplum/gp-operator/gp-instance:7.5.2 ${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-instance:7.5.2
docker push ${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-instance:7.5.2
docker tag tds-greenplum-docker-prod-local.usw1.packages.broadcom.com/greenplum/gp-operator/gp-command-center:7.5.0 ${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-command-center:7.5.0
docker push ${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-command-center:7.5.0
必須ではないですが、HelmチャートもGitHub Container Registryにプッシュしておきます。
helm push ./gp-operator-1.0.0.tgz oci://${DESTINATION_REPOSITORY}/greenplum/gp-operator
Greenplum Operatorのインストール
Helm Chartのデフォルト値を確認します。
$ helm show values oci://${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-operator --version 1.0.0
Pulled: my-private-registry.example.com/gp-operator/gp-operator:1.0.0
Digest: sha256:af0787eef38e853458c0b211c14a0ad41b01a71eb925dd9f980ece60c719b433
controllerManager:
operator:
args:
- --leader-elect
- --health-probe-bind-address=:8081
- --metrics-bind-address=:8443
- --webhook-cert-path=/tmp/k8s-webhook-server/serving-certs
containerSecurityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
env:
certManagerClusterIssuerName: ""
certManagerNamespace: cert-manager
image:
repository: ${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-operator
tag: v1.0.0
imagePullPolicy: Always
resources:
limits:
cpu: 200m
memory: 500Mi
requests:
cpu: 200m
memory: 500Mi
podSecurityContext:
runAsNonRoot: true
replicas: 1
serviceAccount:
annotations: {}
imagePullSecrets: []
kubernetesClusterDomain: cluster.local
metricsService:
ports:
- name: https
port: 8443
protocol: TCP
targetPort: 8443
type: ClusterIP
webhookService:
ports:
- port: 443
protocol: TCP
targetPort: 9443
type: ClusterIP
imageをrelocationしたものに変えるためにvaluesファイルを作成します。
cat <<EOF > gp-operator-values.yaml
---
controllerManager:
operator:
image:
repository: ${DESTINATION_REPOSITORY}/greenplum/gp-operator/greenplum-operator
tag: v1.0.0
resources:
requests:
cpu: 100m
memory: 128Mi
imagePullSecrets:
- name: gp-operator-registry-secret
---
EOF
imagePullSecretsで指定するSecretを作成します。
kubectl create namespace gpdb
kubectl create secret docker-registry gp-operator-registry-secret \
--docker-server=${REGISTRY_HOSTNAME} \
--docker-username=${REGISTRY_USERNAME} \
--docker-password="${REGISTRY_PASSWORD}" \
-n gpdb
Helm Chartのテンプレートを確認します。
helm template gp-operator oci://${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-operator -n gpdb --version 1.0.0 -f gp-operator-values.yaml
Greenplum Operatorをインストールします。
helm upgrade --install \
-n gpdb \
gp-operator \
oci://${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-operator \
-f gp-operator-values.yaml \
--version 1.0.0 \
--wait
GP OperatorのPodが起動していることを確認します。
$ kubectl get pod -n gpdb
NAME READY STATUS RESTARTS AGE
gp-operator-controller-manager-86985f94f7-czlkc 1/1 Running 0 35s
GP OperatorのCRDが作成されていることを確認します。
$ kubectl api-resources --api-group=greenplum.data.tanzu.vmware.com
NAME SHORTNAMES APIVERSION NAMESPACED KIND
greenplumbackuplocations greenplum.data.tanzu.vmware.com/v1 true GreenplumBackupLocation
greenplumbackups gpbackup greenplum.data.tanzu.vmware.com/v1 true GreenplumBackup
greenplumclusters gp greenplum.data.tanzu.vmware.com/v1 true GreenplumCluster
greenplumcommandcenters gpcc greenplum.data.tanzu.vmware.com/v1 true GreenplumCommandCenter
greenplumrestores gprestore greenplum.data.tanzu.vmware.com/v1 true GreenplumRestore
greenplumversions greenplum.data.tanzu.vmware.com/v1 false GreenplumVersion
Greenplum Clusterの作成
GP Operatorのインストールが完了したら、Greenplum Clusterを作成します。まず、Greenplum Versionを作成します。
cat <<EOF > greenplumversion-7.5.2.yaml
---
apiVersion: greenplum.data.tanzu.vmware.com/v1
kind: GreenplumVersion
metadata:
name: greenplumversion-7.5.2
spec:
dbVersion: 7.5.2
image: ${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-instance:7.5.2
operatorVersion: 1.0.0
extensions:
- name: postgis
version: 3.3.2
- name: greenplum_backup_restore
version: 1.31.0
gpcc:
version: 7.5.0
image: ${DESTINATION_REPOSITORY}/greenplum/gp-operator/gp-command-center:7.5.0
---
EOF
kubectl apply -f greenplumversion-7.5.2.yaml
Greenplum Clusterを作成するNamespaceを作成し、イメージプル用のSecretを作成します。
kubectl create namespace demo
kubectl create secret docker-registry gp-operator-registry-secret \
--docker-server=${REGISTRY_HOSTNAME} \
--docker-username=${REGISTRY_USERNAME} \
--docker-password="${REGISTRY_PASSWORD}" \
-n demo
Greenplum Clusterのマニフェストを作成します。今回はCoordinatorが1ノード、Segmentが2ノードの構成にします。
cat <<EOF > gp-demo.yaml
---
apiVersion: greenplum.data.tanzu.vmware.com/v1
kind: GreenplumCluster
metadata:
name: gp-demo
namespace: demo
spec:
version: greenplumversion-7.5.2
imagePullSecrets:
- gp-operator-registry-secret
coordinator:
storageClassName: microk8s-hostpath
service:
type: LoadBalancer
storage: 1Gi
global:
gucSettings:
- key: wal_level
value: logical
segments:
count: 2
storageClassName: microk8s-hostpath
storage: 10Gi
---
EOF
kubectl apply -f gp-demo.yaml
しばらくすると次のリソースが作成されます。
$ kubectl get gp,sts,pod,svc,pvc -n demo -owide
NAME STATUS AGE
greenplumcluster.greenplum.data.tanzu.vmware.com/gp-demo Running 7m58s
NAME READY AGE CONTAINERS IMAGES
statefulset.apps/gp-demo-coordinator 1/1 7m6s instance my-private-registry.example.com/greenplum/gp-operator/gp-instance:7.5.2
statefulset.apps/gp-demo-segment 2/2 6m56s instance my-private-registry.example.com/greenplum/gp-operator/gp-instance:7.5.2
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod/gp-demo-coordinator-0 1/1 Running 0 7m6s 10.1.173.177 cherry <none> <none>
pod/gp-demo-segment-0 1/1 Running 0 6m56s 10.1.173.178 cherry <none> <none>
pod/gp-demo-segment-1 1/1 Running 0 6m43s 10.1.42.171 banana <none> <none>
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/gp-demo-headless-svc ClusterIP None <none> <none> 7m7s cluster-name=gp-demo,cluster-namespace=demo
service/gp-demo-svc LoadBalancer 10.152.183.135 192.168.11.241 5432:30917/TCP 3m45s cluster-name=gp-demo,cluster-namespace=demo,type=coordinator
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE VOLUMEMODE
persistentvolumeclaim/state-gp-demo-coordinator-0 Bound pvc-790a5953-33e1-4f7e-875f-7fba41386016 1Gi RWO microk8s-hostpath <unset> 7m6s Filesystem
persistentvolumeclaim/state-gp-demo-segment-0 Bound pvc-2c114171-13b9-4dd6-b6c7-037018f52843 10Gi RWO microk8s-hostpath <unset> 6m56s Filesystem
persistentvolumeclaim/state-gp-demo-segment-1 Bound pvc-1a458596-9e4d-408d-a200-f16fb643c292 10Gi RWO microk8s-hostpath <unset> 6m43s Filesystem
動作確認
LoadBalancerのEXTERNAL-IPに対して5432ポートで接続します。gpadminユーザーのパスワードはSecretに格納されています。
$ kubectl get secret -n demo gp-demo-creds -ojson | jq '.data | map_values(@base64d)'
{
"gpadmin": "8mOJ2tYC9e4AIu"
}
次のコマンドで接続します。
$ psql postgresql://gpadmin:8mOJ2tYC9e4AIu@192.168.11.241:5432/postgres
psql (17.0, server 12.22)
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, compression: off, ALPN: none)
Type "help" for help.
postgres=#
初期状態は次の通りです。
postgres=# \l
List of databases
Name | Owner | Encoding | Locale Provider | Collate | Ctype | Locale | ICU Rules | Access privileges
-----------+---------+----------+-----------------+---------+-------+--------+-----------+---------------------
postgres | gpadmin | UTF8 | libc | C | C | | |
template0 | gpadmin | UTF8 | libc | C | C | | | =c/gpadmin +
| | | | | | | | gpadmin=CTc/gpadmin
template1 | gpadmin | UTF8 | libc | C | C | | | =c/gpadmin +
| | | | | | | | gpadmin=CTc/gpadmin
(3 rows)
利用可能なExtensionは次の通りです。ベクトル検索のためのpgvectorやUberで使われている地理インデックスシステムであるh3などが利用可能です。
postgres=# SELECT * FROM pg_available_extensions ORDER BY name;
name | default_version | installed_version | comment
------------------------------+-----------------------+-------------------+---------------------------------------------------------------------------------------------------------------------
address_standardizer | 3.3.2 | | Used to parse an address into constituent elements. Generally used to support geocoding address normalization step.
address_standardizer_data_us | 3.3.2 | | Address Standardizer US dataset example
advanced_password_check | 1.4 | | Advanced Password Check
anon | 2.1.0 | | Anonymization & Data Masking for PostgreSQL
btree_gin | 1.3 | | support for indexing common datatypes in GIN
citext | 1.6 | | data type for case-insensitive character strings
dataflow | 1.0 | | Extension which provides extra formatters and types for dataflow
dblink | 1.2 | | connect to other PostgreSQL databases from within a database
diskquota | 2.3 | | Disk Quota Main Program
file_fdw | 1.0 | | foreign-data wrapper for flat file access
fuzzystrmatch | 1.1 | | determine similarities and distance between strings
gp_distribution_policy | 1.0 | | check distribution policy in a GPDB cluster
gp_exttable_fdw | 1.0 | 1.0 | External Table Foreign Data Wrapper for Greenplum
gp_internal_tools | 1.0.0 | | Different internal tools for Greenplum
gp_legacy_string_agg | 1.0.0 | | Legacy one-argument string_agg implementation for Greenplum
gp_sparse_vector | 1.0.1 | | SParse vector implementation for GreenPlum
gp_toolkit | 1.18 | 1.18 | various GPDB administrative views/functions
gp_wlm | 0.1 | | Greenplum Workload Manager Extension
gpss | 1.0 | | Extension which implements kinds of gpss formaters and protocol buffer
greenplum_fdw | 1.1 | | foreign-data wrapper for remote greenplum servers
h3 | 4.1.3 | | H3 bindings for PostgreSQL
h3_postgis | 4.1.3 | | H3 PostGIS integration
hll | 2.16 | | type for storing hyperloglog data
hstore | 1.6 | | data type for storing sets of (key, value) pairs
ip4r | 2.4 | |
isn | 1.2 | | data types for international product numbering standards
ltree | 1.1 | | data type for hierarchical tree-like structures
metrics_collector | 1.0 | | Greenplum Metrics Collector Extension
orafce | 4.9.1 | | Functions and operators that emulate a subset of functions and packages from the Oracle RDBMS
orafce_ext | 1.0 | |
pageinspect | 1.9 | | inspect the contents of database pages at a low level
pg_buffercache | 1.4.1 | | examine the shared buffer cache
pg_cron | 1.6 | | Job scheduler for PostgreSQL
pg_hint_plan | 1.3.9 | |
pg_trgm | 1.4 | | text similarity measurement and index searching based on trigrams
pgaudit | 7.0 | | provides auditing functionality
pgcrypto | 1.3 | | cryptographic functions
pgml | 2.8.5+greenplum.2.0.0 | | pgml: Created by the PostgresML team
pgrouting | 3.6.2 | | pgRouting Extension
plperl | 1.0 | | PL/Perl procedural language
plperlu | 1.0 | | PL/PerlU untrusted procedural language
plpgsql | 1.0 | 1.0 | PL/pgSQL procedural language
plpython3u | 1.0 | | PL/Python3U untrusted procedural language
pointcloud | 1.2.5 | | data type for lidar point clouds
pointcloud_postgis | 1.2.5 | | integration for pointcloud LIDAR data and PostGIS geometry data
postgis | 3.3.2 | | PostGIS geometry and geography spatial types and functions
postgis_raster | 3.3.2 | | PostGIS raster types and functions
postgis_tiger_geocoder | 3.3.2 | | PostGIS tiger geocoder and reverse geocoder
postgres_fdw | 1.0 | | foreign-data wrapper for remote PostgreSQL servers
sslinfo | 1.2 | | information about SSL certificates
tablefunc | 1.0 | | functions that manipulate whole tables, including crosstab
timestamp9 | 1.3.0 | | timestamp nanosecond resolution
uuid-ossp | 1.1 | | generate universally unique identifiers (UUIDs)
vector | 0.7.0 | | vector data type and ivfflat and hnsw access methods
(54 rows)
次のSQLを実行して、テストデータを投入します。
CREATE TABLE IF NOT EXISTS organization
(
organization_id BIGINT PRIMARY KEY,
organization_name VARCHAR(255) NOT NULL
);
INSERT INTO organization(organization_id, organization_name) VALUES(1, 'foo');
INSERT INTO organization(organization_id, organization_name) VALUES(2, 'bar');
データを確認します。
select organization_id,organization_name,gp_segment_id from organization;
デフォルではPrimary Keyでデータが分散されます。gp_segment_idというカラムでデータがどのセグメントに配置されているか確認することができます。
organization_id | organization_name | gp_segment_id
-----------------+-------------------+---------------
2 | bar | 0
1 | foo | 1
(2 rows)
pgvectorを使ったベクトル検索も試してみます。
CREATE EXTENSION vector;
CREATE TABLE items (id bigserial PRIMARY KEY, embedding vector(3));
INSERT INTO items (embedding) VALUES ('[1,2,3]'), ('[4,5,6]');
データを確認します。
SELECT * FROM items ORDER BY embedding <-> '[3,1,2]' LIMIT 5;
ベクトル検索ができました。
id | embedding
----+-----------
1 | [1,2,3]
2 | [4,5,6]
(2 rows)
Greenplum Command Centerの作成
次にGreenplum Command Centerを作成します。
cat <<EOF > gpcc-demo.yaml
apiVersion: greenplum.data.tanzu.vmware.com/v1
kind: GreenplumCommandCenter
metadata:
name: gpcc-demo
namespace: demo
spec:
storageClassName: microk8s-hostpath
greenplumClusterName: gp-demo
storage: 2Gi
service:
type: LoadBalancer
EOF
kubectl apply -f gpcc-demo.yaml
しばらくすると次のリソースが作成されます。
$ kubectl get gp,sts,pod,svc,secret,pvc -n demo -owide
NAME STATUS AGE
greenplumcluster.greenplum.data.tanzu.vmware.com/gp-demo Running 10m
NAME READY AGE CONTAINERS IMAGES
statefulset.apps/gp-demo-coordinator 1/1 10m instance my-private-registry.example.com/greenplum/gp-operator/gp-instance:7.5.2
statefulset.apps/gp-demo-segment 2/2 9m55s instance my-private-registry.example.com/greenplum/gp-operator/gp-instance:7.5.2
statefulset.apps/gpcc-demo-cc-app 1/1 4m26s command-center my-private-registry.example.com/greenplum/gp-operator/gp-command-center:7.5.0
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod/gp-demo-coordinator-0 1/1 Running 0 10m 10.1.42.175 banana <none> <none>
pod/gp-demo-segment-0 1/1 Running 0 9m55s 10.1.173.185 cherry <none> <none>
pod/gp-demo-segment-1 1/1 Running 0 9m48s 10.1.42.177 banana <none> <none>
pod/gpcc-demo-cc-app-0 1/1 Running 0 4m26s 10.1.42.179 banana <none> <none>
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/gp-demo-headless-svc ClusterIP None <none> <none> 10m cluster-name=gp-demo,cluster-namespace=demo
service/gp-demo-svc LoadBalancer 10.152.183.204 192.168.11.241 5432:32002/TCP 8m14s cluster-name=gp-demo,cluster-namespace=demo,type=coordinator
service/gpcc-demo-cc-svc LoadBalancer 10.152.183.75 192.168.11.242 8443:32144/TCP,8080:30307/TCP 3m36s cluster-name=gp-demo,cluster-namespace=demo,type=command-center
NAME TYPE DATA AGE
secret/gemfire-registry-secret kubernetes.io/dockerconfigjson 1 78d
secret/gp-demo-client-cert-secret kubernetes.io/tls 3 25h
secret/gp-demo-creds Opaque 1 8m58s
secret/gp-demo-server-cert-secret kubernetes.io/tls 3 25h
secret/gp-demo-ssh-key Opaque 2 10m
secret/gp-operator-registry-secret kubernetes.io/dockerconfigjson 1 26h
secret/gpcc-demo-cc-creds Opaque 1 3m36s
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE VOLUMEMODE
persistentvolumeclaim/command-center-gpcc-demo-cc-app-0 Bound pvc-5be921dd-d668-489c-80ca-8248db0cd4be 2Gi RWO microk8s-hostpath <unset> 4m26s Filesystem
persistentvolumeclaim/state-gp-demo-coordinator-0 Bound pvc-6bc2b6b0-4b13-47c0-ad1f-6c1ca47aada0 1Gi RWO microk8s-hostpath <unset> 10m Filesystem
persistentvolumeclaim/state-gp-demo-segment-0 Bound pvc-7a634b8d-5dd6-4f8d-a81d-bf2ec41c4029 10Gi RWO microk8s-hostpath <unset> 9m55s Filesystem
persistentvolumeclaim/state-gp-demo-segment-1 Bound pvc-436ed5cb-8449-468c-8bb6-f16a64317b81 10Gi RWO microk8s-hostpath <unset> 9m48s Filesystem
LoadBalancerのEXTERNAL-IPに対して8080ポートで接続します。
gpmonユーザーのパスワードはSecretに格納されています。
$ kubectl get secret -n demo gpcc-demo-cc-creds -ojson | jq '.data | map_values(@base64d)'
{
"gpmon": "6PXN0s7xdfyLp9"
}
簡単なセットアップでモニタリングできるのは嬉しいですね。
リソースの削除
kubectl delete -f gpcc-demo.yaml
kubectl delete -f gp-demo.yaml
helm uninstall -n gpdb gp-operator --wait
Greenplum on Kubernetes 1.0を試しました。初期バージョンなのでまだまだ改善点が多いと思いますが、 Greenplumを試しやすくなったのは良いことだと思います。今後のバージョンアップに期待です。
